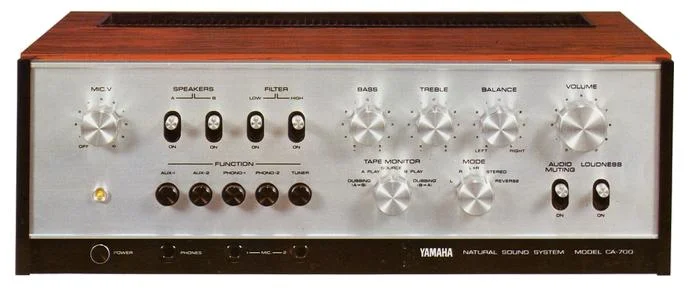

CA-700

Overview

In 1972 Yamaha released the first generation of component stereo, the 700 Series integrated amplifiers. They featured a rich assortment of input/output channels including separate MM-only and MC-only phono inputs, tape deck input/output, two channels of aux input/output, and a stereo microphone input on the front panel with mixing volume adjustment, making them suitable for a wide range of applications including home audio, audio-visual education, in-store, and other semi-pro uses. The power amplifier circuit was an orthodox ±2 power supply all-stage full-direct semi-complementary OCL type, and the tone control was one that would continue to be used in many later models as the "Yamaha method" tone control, the original NF type. The circuitry was not the latest pure complementary type, but the engineers may have been avoiding an adventurous approach for their first foray into the component stereo field. The 400mm wide cabinet was slightly smaller than modern models, and the Brazilian rosewood veneer was luxurious by present-day standards. It didn’t have outstanding specs or appearance that would make it appeal to audio fanatics, but it was a fine, Yamaha-like piece of workmanship.

European versions had DIN sockets (inputs and speaker terminals), other versions had RCA inputs with Tape In/Out doubled with DIN and spring clamp speaker terminals.

Specifications

  • Power output: 60 watts per channel into 8Ω (stereo)
  • Frequency response: 20Hz to 30kHz
  • Total harmonic distortion: 0.05%
  • Damping factor: 50
  • Input sensitivity: 4mV (mic), 3mV (MM), 200mV (line)
  • Channel separation: 50dB (MM), 50dB (line)
  • Output: 200mV (line), 30mV (DIN), 0.775V (Pre out)
  • Dimensions: 400 x 300 x 140mm
  • Weight: 10kg



Manufactured

  • 1972-1975

Cost

  • £142.00 (1974)
  • £1,535.00 (Relative Cost - 2015)

References

History of Integrated Amplier - Yamaha en Website
